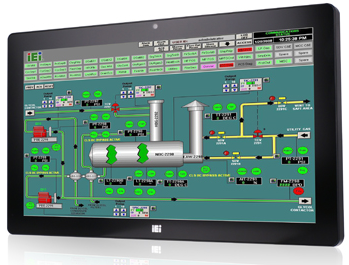

> 产品 > 轻薄平板电脑（ULT） > AFL3-W19C-ULT3| ● W19” light industrial interactive panel PC |
|
● 9 V ~ 30 V wide range DC power input
|
|
● Selectable AT/ATX power mode
|
|
● Built-in speakers
|
|
● One mSATA slot
|
|
● IP64 compliant front panel
|
|
● IEI One Key Recovery solution alllows you
to create rapid OS backup and recovery (suggested with over 4GB storage
capacity)
|
产品规格
|
Cooling method / System Fan
|
Fanless |
|
CPU
|
Intel® Core™ i5 and Celeron® ULT Processor |
|
Storage
|
1 x 2.5” SATA 3Gb/s HDD bay |
| 1 x M.2 M key PCIe storage (2280 or 22110) | |
| 1 x mSATA slot | |
|
Bluetooth
|
Bluetooth v4.0 (M.2 slot) |
|
Wireless
|
IEEE 802.11a/b/g/n/ac |
|
Ethernet
|
2 x Intel® I211-AT PCIe GbE controller |
|
Audio
|
AMP 3W + 3W (internal speaker) |
|
Audio Codec
|
ALC892 |
|
RAM
|
Two 260-pin DDR4 SO-DIMMs (system max.32GB) |
|
I/O Ports and Switches
|
1 x RS-232 by DB-9 (RI/5V/12V) |
| 1 x RS-232/422/485 by DB-9 (RI/5V/12V) | |
| 2 x GbE LAN | |
| 4 x USB 3.0 | |
| 1 x HDMI output | |
| 1 x Power switch | |
| 1 x Reset button | |
| 1 x AT/ATX switch | |
| 1 x 9-30V lockable power jack | |
|
Power consumption
|
12V@7.1A |
|
Power Requirement
|
9 V ~ 30 VDC |
|
Operating Temperature
|
-20°C~50°C |
|
Safety & EMC
|
CE / FCC |
|
Humidity
|
10% to 95% (non-condensing) |
|
Storage Temperature
|
-20°C~60°C |
|
IP Level
|
IP 64 compliant front panel |
|
Color
|
Black C |
|
Mounting
|
Panel, Wall, Rack, Stand and Arm |
| VESA 75mm x 75mm / 100mm x 100mm | |
|
Dimensions (LxWxH) (mm)
|
470 x 290 x 70 |
|
Net Weight
|
7.3Kg |
|
Construction Front Panel
|
PC + ABS Plastic |
|
Cutout Dimensions
|
443 x 261 (W x H) (mm) |
|
Weight
|
7.3/10Kg |
|
Size
|
18.5"" |
|
Resolution
|
1366 x 768 (16:9) |
|
Brightness (cd/m2)
|
250 |
|
Contrast Ratio
|
1000:01:00 |
|
LCD Color
|
262K |
|
Pixel Pitch (mm)
|
0.240 (H) x 0.240 (V) |
|
Viewing Angle (H-V)
|
170º/160º |
|
Backlight MTBF
|
30,000 (LED backlight panel) |
|
Touch Screen
|
Projected capacitive type with USB interface |
|
Touch Controller
|
EETI EXC3180 |
|
Camera
|
2-megapixel with low light function |
|
OSD Function
|
Software OSD |
|
System Cooling
|
Fanless |
|
Microphone
|
digital microphone |
|
I/O Interface
|
1 x RS-232 (DB-9 (RI/5V/12V)) |
| 1 x RS-422/485 (DB-9 (RI/5V/12V)) | |
| 4 x USB 3.0 | |
| 1 x HDMI (output) | |
| 2 x LAN (Gbe) | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
| 1 x Power In (9-30V lockable power jack) |
| AFL3-W19C-ULT3-i5/PC/4G-R10 | Wide 18.5” 250 cd/m² 1366x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10 |
| AFL3-W19C-ULT3-C/PC/4G-R10 | Wide 18.5” 250 cd/m² 1366x768 Panel PC with withIntel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10 |
