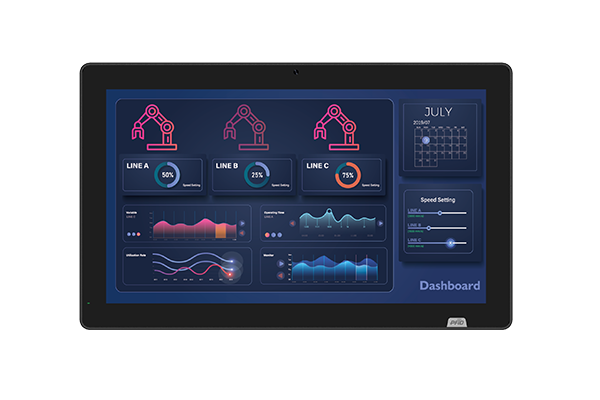

> 产品 > 轻薄平板电脑（ULT） > AFL3-W19C-ADLP
| » 第十二代英特尔Intel® Core™ Mobile i7/i5/i3处理器 |
|
» 全高清电容触控屏
|
|
»
具备防眩光和防紫外的电容触控屏
|
|
»
支持额外连接器接口的E-Window
|
|
» 支持WiFi 6E
和蓝牙 5.2
|
| CPU | 第十二代 Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P) |
| 存储 | 1 x 2.5” SATA 硬盘位 |
| 网络 | 网口一:
通过Intel® I226 LM驱动 网口二: 通过Intel® I226V驱动 |
| Audio | AMP 3W + 3W (内部扬声器) |
| 扩展 | 2
x M.2 2280 M-key (PCle Gen 4 x4) 1 x M.2 B KEY (PCIe x1 or SATA) for IPMI 1 x M.2 2230 E Key Slot support Vpro (PCIe 3.0 x1 + USB2.0 x1 + CNVI) |
| 音频编解码器 | ALC888S |
| 工作温度 | 0°C ~ 50°C (50°C @90RH, ambient with air flow) |
| 安规&电磁 | CE, FCC (Class A) , UKCA |
| 相对湿度 | 10% ~ 90% (无冷凝) |
| 存储温度 | -20ºC ~ 60ºC |
| 机身颜色 | 黑色 |
| 安装方式 | Panel, Wall, Stand and Arm VESA 75 /100mm |
| Power Supply | 12V直流 |
| 无线 | IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key) |
| LCD 尺寸 | 18.5” |
| 分辨率 | 1920 x 1080 (16:9) |
| 亮度 | 350 cd/m² |
| 对比度 | 50.00069444 |
| 可视角度 (H-V) | 170°/170° |
| 背光 MTBF | 50000小时 |
| 触摸屏 | PCAP with USB interface (anti-UV/AR coating) |
| 触控IC | EXC3160 |
| IP Level | 前面板符合IP64 |
| Construction Front Panel | PC + ABS 塑料 |
| I/O 接口 | 1
x RS-232 (by DB9) 1 x RS-232/422/485 (by DB9) 4 x USB 3.2 Gen1x1 (Type-A (5Gb/s)) 1 x HDMI™ (2.0 (高达 3840*2160 @60Hz)) 2 x LAN (英特尔® I226V 2.5GbE控制IC) 1 x Reset Button 1 x AT/ATX switch 1 x Clear CMOS Button |
| Memory Ext. | 两个
260-pin 3200 MHz 双通道DDR4 SO-DIMM (8G预安装,可达64GB) |
| AFL3-W19C-ADLP-i7/8G-R11 | Wide 18.5" 350cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i7-1260P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS,R11 |
| AFL3-W19C-ADLP-i5/8G-R11 | Wide 18.5" 350cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i5-1240P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS,R11 |
| AFL3-W19C-ADLP-i3/8G-R11 | Wide 18.5" 350cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i3-1220P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS,R11 |
产品特征
