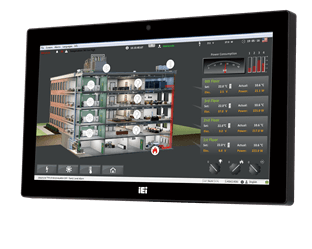

● W15” light industrial interactive panel PC |
● 9 V ~ 30 V wide range DC power input
|
● Selectable AT/ATX power mode
|
● Built-in speakers
|
● One mSATA slot
|
● IP64 compliant front panel
|
● IEI One Key Recovery solution alllows you
to create rapid OS backup and recovery (suggested with over 4GB storage
capacity)
|
产品规格
Cooling method / System Fan
|
Fanless |
CPU
|
6th Generation Intel® Core™ i5 and Celeron® on-board processor |
Storage
|
1 x 2.5” SATA 3Gb/s HDD bay |
1 x M.2 M key PCIe storage (2280 or 22110) | |
1 x mSATA slot | |
Bluetooth
|
Bluetooth v4.0 |
Wireless
|
IEEE 802.11a/b/g/n/ac |
Ethernet
|
2 x Intel® I211 PCIe GbE controller |
Audio
|
AMP 3W + 3W (internal speakers) |
Audio Codec
|
ALC892 |
RAM
|
Two 260-pin 2133/1867 MHz dual-channel |
DDR4 SO-DIMMs (system max. 32 GB) | |
I/O Ports and Switches
|
1 x RS-232 by DB-9 (RI/5V/12V) |
1 x RS-232/422/485 by DB-9 (RI/5V/12V) | |
2 x GbE LAN | |
4 x USB 3.0 | |
1 x HDMI output | |
1 x Power switch | |
1 x Reset button | |
1 x AT/ATX switch | |
1 x 9-30V lockable power jack | |
Power consumption
|
12V@6A (Intel® Core™ i5-6300U CPU with 4GB DDR4 2133 MHz DDR4 memory) |
Operating Temperature
|
-20°C~50°C |
Safety & EMC
|
CE / FCC |
Humidity
|
10% to 95% (non-condensing) |
Storage Temperature
|
-20°C~60°C |
IP Level
|
IP 64 compliant front panel |
Color
|
Black C |
Mounting
|
Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm |
Dimensions (LxWxH) (mm)
|
396 x 250 x 64 |
Net Weight
|
4.5Kg |
Construction Front Panel
|
PC + ABS Plastic |
Weight
|
4.5/6.5Kg |
Size
|
15.6"" |
Resolution
|
1366 x 768 (16:9) |
Brightness (cd/m2)
|
400 |
Contrast Ratio
|
500:01:00 |
LCD Color
|
16.2M |
Pixel Pitch (mm)
|
0.240 (H) x 0.240 (V) |
Viewing Angle (H-V)
|
170º / 160º |
Backlight MTBF
|
50000 (LED backlight) |
Touch Screen
|
5-wire resistive type with RS-232 interface / projected capacitive type with USB interface |
Touch Controller
|
PenMount DMC9000/ EETI EXC7200 |
Camera
|
2-megapixel with low light function |
OSD Function
|
Software OSD |
System Cooling
|
Fanless |
Microphone
|
digital microphone |
I/O Interface
|
1 x RS-232 (DB-9 (RI/5V/12V)) |
1 x RS-422/485 (DB-9 (RI/5V/12V)) | |
4 x USB 3.0 | |
1 x HDMI (output) | |
2 x LAN (Gbe) | |
1 x Reset Button | |
1 x Power Switch | |
1 x AT/ATX switch | |
1 x Power In (9-30V lockable power jack) |
AFL3-W15C-ULT3-C/PC/4G-R13 | Wide 15.6” 400 cd/m² 1366x768 Panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,with AG,R13 |
AFL3-W15C-ULT3-C/R/4G-R13 | Wide 15.6” 400 cd/m² 1366x768 Panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, resistive touch, 2M camera, microphone,with AG,R13 |
AFL3-W15C-ULT3-i5/PC/4G-R13 | Wide 15.6” 400 cd/m² 1366x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone , with AG, R13 |
AFL3-W15C-ULT3-i5/R/4G-R13 | Wide 15.6” 400 cd/m² 1366x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, resistive touch, 2M camera, microphone , with AG, R13 |
