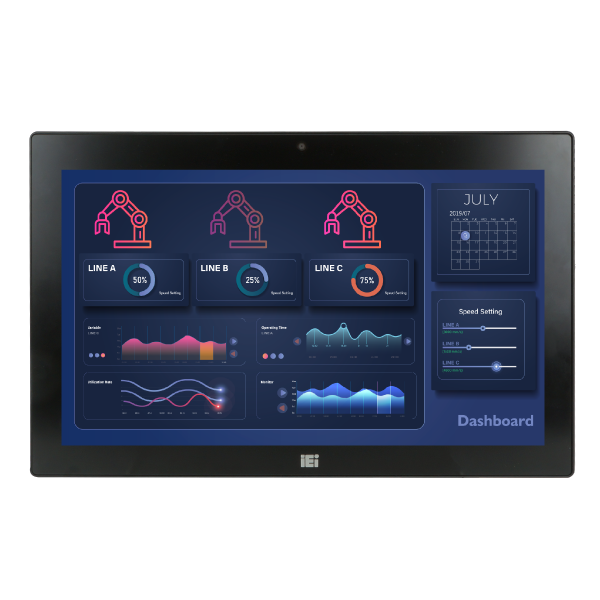

> 产品 > 轻薄平板电脑（POE） > AFL3-W15A-AL| • W15.6” light industrial interactive panel PC |
|
• 9 V ~ 30 V wide range DC input with
lockable DC jack
|
|
• Selectable AT/ATX power mode
|
|
• Built-in speakers
|
|
• Support PoE PD IEEE803.2 af/at/bt
|
|
• IP64/IP65 compliant front panel
|
|
• Touch screen wth anti-UV / anti-glare
coating
|
产品规格
|
Cooling method / System Fan
|
Fanless |
|
CPU
|
Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz) |
|
Storage
|
1 x 2.5” SATA 3Gb/s HDD bay |
| 1 x M.2 B+M key PCIe 2242 (USB/PCIE/SATA signal) | |
|
Bluetooth
|
Bluetooth V4.1 |
|
Wireless
|
IEEE 802.11a/b/g/n/ac |
|
Ethernet
|
2x PCIe GbE by Intel® i211 controller |
|
Audio
|
AMP 2W + 2W (internal speaker) |
|
Audio Codec
|
ALC269 |
|
RAM
|
one 204-pin 1866MHz DDR3L DIMMs support up to 8GB |
|
Power Requirement
|
9~30V , 6.67A~5A |
|
Operating Temperature
|
-20°C ~ 50°C |
|
Humidity
|
10% to 95% (non-condensing) |
|
Storage Temperature
|
-20°C~60°C |
|
Weight
|
3.3kg/5.6kg |
|
Size
|
15,6” |
|
Resolution
|
1366 x 768 (16:9) |
|
Brightness (cd/m2)
|
300 |
|
Contrast Ratio
|
500:01:00 |
|
LCD Color
|
16.7M |
|
Pixel Pitch (mm)
|
0.252 (H) x 0.252 (V) |
|
Viewing Angle (H-V)
|
170° / 160° |
|
Backlight MTBF
|
50000 (LED backlight) |
|
Touch Screen
|
Projected capacitive type with USB interface (anti-UV) |
|
Touch Controller
|
EETI EXC3160 |
|
Camera
|
2-megapixel with low light function |
|
Microphone
|
digital microphone |
|
I/O Interface
|
1 x AT/ATX Switch |
| 1 x Clear CMOS | |
| 1 x Line out | |
| 1 x RS-232 (RS-232 by DP9 (RI/5V , 1A)) | |
| 1 x RS-422/485 (RS-232/422/485 by RJ45) | |
| 2 x USB 2.0 | |
| 2 x USB 3.0 | |
| 1 x HDMI (output) | |
| 2 x LAN (GbE) | |
| 1 x Power Switch | |
| 1 x Reset Button | |
| 1 x Power In (9 V ~ 30 V lockable DC jack) |
| AFL3-W15A-AL-J2/P/PC/4G-R10 | Wide 15.6” 300 cd/m² 1366x768 Panel PC with Intel® Celeron® Processor J3455 (10W) on-board Processor, POE option, 1*4GB DDR3L , 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10 |
