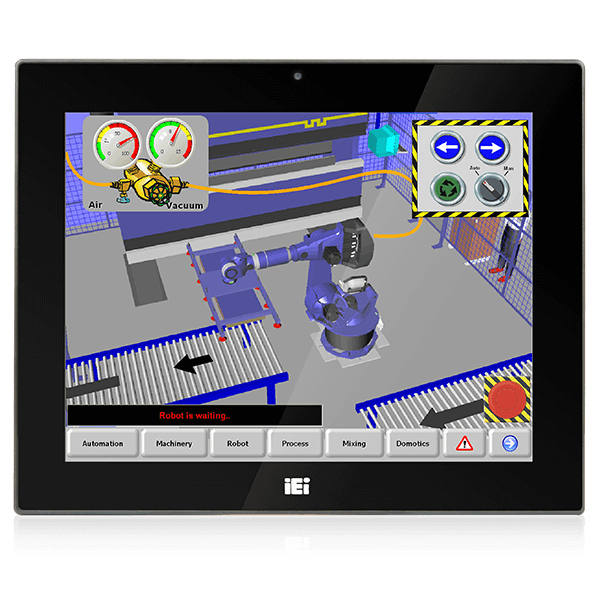

● 12.1” light industrial interactive panel PC |
● Intel 6th Generation Skylake
|
● Wide range DC input with lockable DC jack
|
● Selectable AT/ATX power mode
|
● Built-in speakers
|
● One mSATA slot
|
● One HDMI output
|
● IP64 compliant front panel
|
● IEI One Key Recovery solution alllows you
to create rapid OS backup and recovery (suggested with over 4GB storage
capacity)
|
产品规格
CPU
|
6th Generation Intel® Core™ i5 and Celeron® on-board processor |
Storage
|
2.5” SATA 3Gb/s HDD bay |
M.2 M key PCIe (2230) | |
mSATA slot (PCIe/mSATA/USB) | |
Bluetooth
|
Bluetooth V4.0 |
Wireless
|
IEEE 802.11a/b/g/n/ac |
Ethernet
|
2x PCIe GbE by Intel® i211 controller |
Audio
|
AMP 3W + 3W (internal speaker) |
Audio Codec
|
ALC892 |
RAM
|
One 260-pin 2133MHz single-channel, 4GB |
DDR4L SO-DIMM pre-installed (system max. 8GB) | |
Power consumption
|
12V@6A |
Operating Temperature
|
-20°C ~ 50°C |
Humidity
|
10% to 95% (non-condensing) |
Storage Temperature
|
-20°C~60°C |
Weight
|
3/5.03 |
Size
|
12.1"" |
Resolution
|
1024 x 768 (4:3) |
Brightness (cd/m2)
|
500 |
Contrast Ratio
|
700:01:00 |
LCD Color
|
16.2M |
Pixel Pitch (mm)
|
0.240 (H) x 0.240 (V) |
Viewing Angle (H-V)
|
160º / 160º |
Backlight MTBF
|
50000 (LED backlight) |
Touch Screen
|
Projected capacitive type with USB interface (anti-UV) |
Touch Controller
|
EETI EXC3180 |
Camera
|
2-megapixel with low light function |
Microphone
|
digital microphone |
I/O Interface
|
1 x RS-232 (DB-9 (RI/5V/12V)) |
1 x RS-422/485 (DB-9 (RI/5V/12V)) | |
2 x USB 2.0 | |
2 x USB 3.0 | |
1 x HDMI | |
2 x LAN (GbE) | |
1 x Reset Button | |
1 x Power Switch | |
1 x AT/ATX switch | |
1 x Power In |
AFL3-12C-ULT3-C/PC/4G-R10 | 12.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Celeron®3855U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R10 |
AFL3-12C-ULT3-i5/PC/4G-R10 | 12.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R10 |
