● Fanless system with Intel® Celeron® N3160 processor |
● Dual display
|
● Two RS-232/422/485
|
● Full-size PCIe Mini slot for expansion
|
● Four USB 3.0 ports
|
● Two GbE LAN ports
|
产品规格
SBC Form Factor
|
CPU:Intel® Celeron® N3160 |
(up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W) | |
Chipset:SoC | |
System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM | |
(system max: 8 GB) Pre-installed 2 GB | |
Cooling method / System Fan
|
Fanless |
Drive Bays
|
1 x 2.5' SATA 6Gb/s HDD/SSD drive bay |
Buttons
|
1 x Power button, 1 x AT/ATX switch |
Indicators
|
HDD |
I/O Ports
|
4 x USB 3.0 |
Ethernet: | |
2 x RJ-45 PCIe GbE by Intel® I211 controller | |
2 x RJ-45 RS-232/422/485 | |
1 x HDMI, 1 x VGA | |
1 x Line-out, 1 x Line-in | |
Operating Temperature
|
-20°C ~ 60°C with air flow |
Humidity
|
10% ~ 95%, non-condensing |
Dimensions
|
136.6 x 102.4 x 52 |
Weight
|
470 g/1.4 kg |
Color
|
Black |
Expansion Slots
|
1 x Full-size PCIe Mini card |

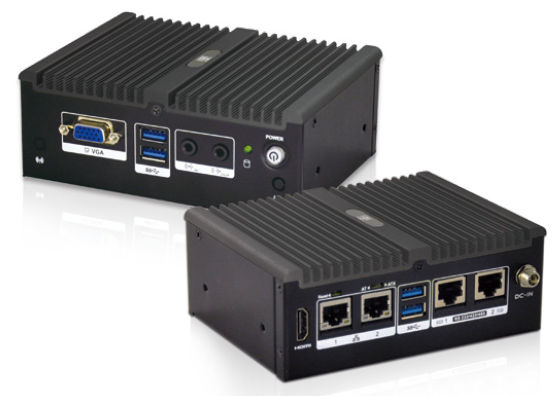

uIBX-250-BW-N3/2G-R20 | Fanless embedded system with Intel® Celeron® N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 2 GB DDR3L pre-installed memory,12 V DC, with RS-232/422/485, USB 3.0, VGA/HDMI, dual Intel® PCIe GbE, RoHS |
