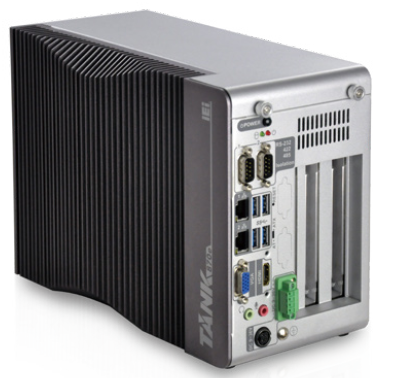

● 6th/7th Gen Intel® Core™ processor platform with Intel® H110 chipset and DDR4 memory |
● Support dual display VGA+HDMI
|
● On-board internal power connector for
providing power to add-on cards
|
● Great flexibility for hardware expansion
|
产品规格
SBC Form Factor
|
●CPU: |
Intel 7th Gen Core CPU & | |
Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W) | |
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W) | |
●Chipset: Intel® H110 | |
●System Memory: | |
2 x 260-pin DDR4 SO-DIMM, one 4 GB pre-installed (system max: 32GB) | |
●Power: | |
Input - DC Jack: 9 V~36 V DC, Terminal Block: 9 V~36 V DC | |
Consumption: 19 V@3.44 A (Intel® Core™ i7-6700TE with 8 GB memory) | |
Internal Connector: 5V@3A or 12V@3A | |
●Reliability: | |
Operating Shock - Half-sine wave shock 5G, 11ms, 100 shocks per axis | |
Non-Operating Shock - Half-sine wave shock 15G, 11ms, 100 shocks per axis | |
Operating Vibration - MIL-STD-810G 514.6C-1 (with SSD) | |
Non-Operation Vibration - Half-sind mode IEC-60068-2-06 | |
Safety/EMC - CE/FCC | |
Cooling method / System Fan
|
Fanless |
Drive Bays
|
1 x 2.5" SATA 6Gb/s HDD/SSD bay |
Buttons
|
1 x Power Button |
1 x Reset Button | |
1 x AT/ATX Switch | |
I/O Ports
|
●USB: 4 x USB 3.0 |
●Ethernet: | |
2 x RJ-45 PCIe GbE by RTL8111G controller | |
●COM Port: | |
2 x RS-232/422/485 (DB-9, w/ 2.5kV isolation protection) | |
●Display: | |
1 x VGA (Up to 1920 x 1200@60Hz) | |
1 x HDMI 1.4 (up to 3840x2160@30Hz) | |
●Audio: 1 x Line-out, 1 x Mic-in | |
Operating Temperature
|
i7-6700TE -20°C ~ 50°C with air flow (SSD) |
i5-6500TE -20°C ~ 60°C with air flow (SSD) | |
Humidity
|
10% ~ 95%, non-condensing |
Construction
|
Extruded aluminum alloys |
Dimensions
|
132.6 x 255.2 x 190 (WxDxH) (mm) |
Weight
|
4.2 kg/6.3 kg |
Color
|
Dark silver purple + Silver |
Expansion Slots
|
●PCIe Mini: |
1 x Full-size PCIe Mini slot | |
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA) | |
●Backplane: | |
3A: 1 x PCIe x16, 2 x PCI | |
3B: 1 x PCIe x16, 1 x PCIe x4, 1 x PCI | |
3C: 3 x PCI | |
TANK-870e-H110-i5/4G/3A-R10 | Ruggedized Fanless embedded system with Intel® Core i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 1 x PCIe by 16 & 2 x PCI expansion, VGA/HDMI, 9~36V DC, RoHS |
TANK-870e-H110-i5/4G/3B-R10 | Ruggedized Fanless embedded system with Intel® Core i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 1 x PCIe by 16 & 1 x PCIe by 1 & 1 x PCI expansion, VGA/HDMI, 9~36V DC, RoHS |
TANK-870e-H110-i5/4G/3C-R10 | Ruggedized Fanless embedded system with Intel® Core i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 3 x PCI expansion, VGA/HDMI, 9~36V DC, RoHS |
TANK-870e-H110-i7/4G/3A-R10 | Ruggedized Fanless embedded system with Intel® Core i7-6700TE 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 1 x PCIe by 16 & 2 x PCI expansion, VGA/HDMI, 9~36V DC, RoHS |
TANK-870e-H110-i7/4G/3B-R10 | Ruggedized Fanless embedded system with Intel® Core i7-6700TE 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 1 x PCIe by 16 & 1 x PCIe by 1 & 1 x PCI expansion, VGA/HDMI, 9~36V DC, RoHS |
TANK-870e-H110-i7/4G/3C-R10 | Ruggedized Fanless embedded system with Intel® Core i7-6700TE 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 3 x PCI expansion, VGA/HDMI, 9~36V DC, RoHS |
