TANK-801-BT

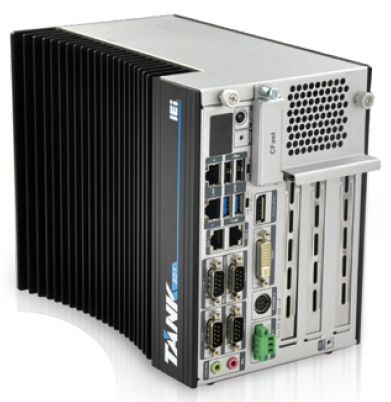

Enlarge image
Fanless embedded system with two PCI and one PCIe x 1 expansion , Intel Bay-Trail J1900 2GHz

Datasheet (PDF)    Download (Deriver/BIOS/Manual/QIG)


产品特征 产品特征

● Intel® Celeron® J1900 2 GHz, 10W
● 16-bit 数字 I/O, 8-bit 输入/8-bit 输出
● 1 x DVI-I ,1 x 显示端口
● 各种扩展类型:
3A: 一个 PCIe x1 + 两个 x PCI
3B: 两个 PCIe x1 + 一个 x PCI
3C: 3 x PCI
● 双直流电源输入

产品规格 产品规格

SBC Form Factor
CPU:
Intel® Celeron® J1900 2 GHz
芯片组:SoC
系统内存:
一个 204-pin DDR3L 1.35V SO-DIMM
预装 2 GB (系统****容量: 8G)
　
Cooling method / System Fan
无风扇
Drive Bays
1 x 2.5' SATA 6Gb/s HDD/SSD Bay
I/O Ports
2 x USB 3.0
2 x USB 3.0
以太网:
2 x RJ-45
1 x PCIe GbE by Intel® I210
1 x PCIe GbE by Intel® I211
COM 端口:
2 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9, 带隔离)
16-bit 数字 I/O, 8-bit 输入/8-bit 输出
1 x 显示端口, 1 x DVI-I
1 x Line-out, 1 x Mic-in
Operating Temperature
-20°C ~ 60°C 含气流 (SSD)
Humidity
5% ~ 95%, 无冷凝
Dimensions
136 x 219 x 188
Weight
2.8 kg/4.3 kg
Color
黑 C + 银
Expansion Slots
1 x 全尺寸 PCIe Mini
PCI/PCIe:
3A: 一个 PCIe x1 + 2 x PCI
3B: 两个 PCIe x1 + 1 x PCI
3C: 3 x PCI

订购信息 订购信息

TANK-801-BTi-J1/2G/3A-R11Fanless embedded system with two PCI and one PCIe x 1 expansion , Intel Bay-Trail J1900 2GHz, TDP 10W, 2GB DDR3L pre-installed memory , 1 x DVI-I, 1 x DisplayPort , iRIS-2400 optional, 9V~36V DC; RoHs
TANK-801-BTi-J1/2G/3C-R11Fanless embedded system with three PCI expansion , Intel Bay-Trail J1900 2GHz, TDP 10W, 2GB DDR3L pre-installed memory , 1 x DVI-I, 1 x DisplayPort , iRIS-2400 optional, 9V~36V DC; RoHs
TANK-801-BTi-J1/2G/3B-R11Fanless embedded system with one PCI and two PCIe x 1 expansion , Intel Bay-Trail J1900 2GHz, TDP 10W, 2GB DDR3L pre-installed memory , 1 x DVI-I, 1 x DisplayPort , iRIS-2400 optional, 9V~36V DC,RoHs
