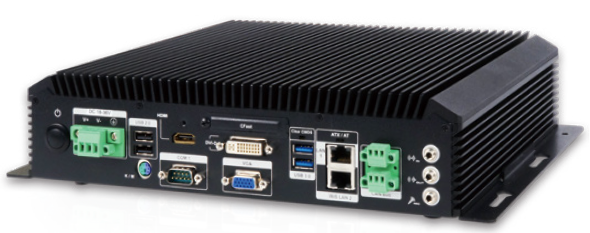

> 产品 > 智能交通系统 > SBOX-100-QM87i| ● Fanless marine computer with 4th Generation Intel® Core™ i5 dual-core processor |
|
● -15°C ~ +55°C wide temperature
|
|
● Isolation protection
|
|
4 x RS-232/422/485 isolated serial ports
|
|
Isolated 18 V~36 V DC input
|
|
2 x Isolated CAN-bus 2.0B
|
|
● 2 x 2.5"" SSD bay with RAID 0/1
function
|
|
● Supports IEI iRIS-2400 (IPMI 2.0 compliant)
|
产品规格
|
SBC Form Factor
|
CPU: Intel® mobile Core™ i5-4400E (2.7 GHz, 37W) |
| Chipset: Intel® QM87 | |
| System Memory: 2 x 204-pin DDR3 SO-DIMM slot | |
| (system max. 16 GB) | |
| Pre-installed 4 GB DDR3 SO-DIMM | |
|
Cooling method / System Fan
|
Fanless |
|
Drive Bays
|
2 x 2.5” SATA 6Gb/s SSD bay with |
| RAID 0/1 function | |
|
Indicators
|
Power (power on: green, power off: orange), |
| storage (red, blinking), IPMI (blue) | |
|
I/O Ports
|
1 x PS2 (KB/MS) |
| 2 x USB3.0 | |
| 2 x USB2.0 | |
| 2 x RJ-45 with teaming support | |
| 1 x PCIe GbE by Intel® I217LM | |
| 1 x PCIe GbE by Intel® I210-AT | |
| (2 with 2 kV isolation) | |
| 1 x DB-9 (non-isolated) | |
| 4 x RS-232/422/485 (with 2.5 kV isolation) | |
| 2 x CAN-bus (with 2.5 kV isolation) | |
| 1 x VGA | |
| 1 x DVI-D | |
| 1 x HDMI | |
| 1 x Line-out, 1 x Line-in, 1 x Mic-in | |
| 2 x Antenna SMA hole (reserved) | |
|
Operating Temperature
|
-15°C ~ 55°C with air flow |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Dimensions
|
290 x 75 x 225 |
|
Weight
|
4.08 kg / 6.03 kg |
|
Color
|
Black |
|
Expansion Slots
|
2 x Full size |
| SBOX-100-QM87i-i5/4G-R10 | Fanless marine computer with Intel® Mobile Core™ i5-4400E 2.7GHz Processor ,DDR3 4GB, iRIS-2400 supported, isolated 18~36V DC, R10 |
