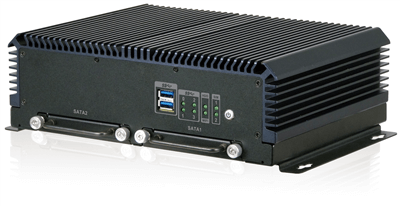

> 产品 > 智能交通系统 > IVS-300-ULT3| ● Intel® Skylake ULT /Baytrail processor |
|
● 4 x PoE IEEE802.3af
|
|
● 2x Hot-swappable 2.5"" drive bay
|
|
● Optional 3G/Wi-Fi
|
|
● 2 x RS-232, 1 x Isolated RS-422/485
|
|
● 4 x DI/DO
|
|
● 1 x HDMI (lockable), 1 x VGA
|
产品规格
|
SBC Form Factor
|
CPU: Intel® Skylake ULT /Baytrail processor |
| Chipset: SoC | |
| System Memory:2 x 204-pin DDR3L SO-DIMM. 1 x 4GB pre-installed | |
|
Cooling method / System Fan
|
Fanless |
|
Drive Bays
|
2 x 2.5"" SATA 3Gb/s HDD/SSD drive bay |
|
Indicators
|
8 x LED (4 PoE, 1 HDD, 1 Wi-Fi, 2 SIM) |
|
I/O Ports
|
2 x USB3.0 |
| 4 x PoE IEEE802.3af (one port max 15.4W) | |
| 2 x DB-9 RS-232 | |
| 1 x DB-15 isolated RS-422/485 | |
| Isolated 8-bit digital I/O (4-bit input, 4-bit output) | |
| 1 x DB9 CAN-Bus/OBD-II | |
| 1 x VGA | |
| 1 x HDMI | |
| 1 x Mic in, 1 x Line out | |
| 2 x SIM slot | |
|
Operating Temperature
|
-20°C ~ 60°C with air flow |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Dimensions
|
255 x 80 x 185 |
|
Weight
|
3kg/4.5kg |
|
Color
|
Blue C |
|
Expansion Slots
|
1 x Half-size PCIe Mini (reserved for Wi-Fi) |
| 1 x Full-size PCIe Mini (reserved for 3G) | |
| 1 x Full-size PCIe Mini (only for skylake platform) |
| IVS-300-BT-J1/4G-R10 | Fanless embedded system with Intel® Celeron® Processor J1900 (10W) Processor with 4GB DDR3L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5" removable SATA HDD bay, RoHs |
| IVS-300-ULT3-i5/4G-R10 | Fanless embedded system with Intel® Core™ i5-6300U (15W) Processor (ULT) with 4GB DDR4L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5" removable SATA HDD bay, RoHs |
| IVS-300-ULT3-i7/4G-R10 | Fanless embedded system with Intel® Core™ i7-6600U (15W) Processor (ULT) with 4GB DDR4L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5" removable SATA HDD bay, RoHs |
