● Intel® Skylake ULT processor |
● Dual M12 LAN port
|
● VGA / DVI dual display
|
● Dual SIM card design
|
● 24V / 110V DC input
|
● 2 x 2.5"" hot-swappable SATA SSD
drive bay
|
● EN 50155
|
产品规格
SBC Form Factor
|
CPU:Intel® Core™ i5-6300U processor (dual-core, 2.4 GHz, 15W TDP) |
Chipset:SoC | |
System Memory:2 x 260-pin DDR4L SO-DIMM 4GB pre-installed (system max. 32 GB) | |
Cooling method / System Fan
|
Fanless |
Drive Bays
|
2 x 2.5' SATA 6Gb/s SSD drive bay |
I/O Ports
|
2 x USB 3.0 |
1 x USB 2.0 (M12 connector) | |
2 x M12 connector PCIe GbE by Intel® I1211 | |
2 x DB-9 RS-232/422/485 (with 1.5 kV isolation) | |
1 x Terminal block for 8-bit digital I/O (4-bit input/4-bit output, 1.5 kV isolation) | |
1 x VGA | |
1 x DVI-D | |
1 x Line-out, 1 x Mic-in | |
2 x SIM card slot | |
Operating Temperature
|
-40°C ~ 70°C with air flow (with industrial SSD/CF), compliant with EN 50155 |
Humidity
|
10% ~ 95%, non-condensing |
Dimensions
|
290 x 69 x 225 |
Weight
|
3.9 kg / 5.1 kg |
Color
|
Blue C |
Expansion Slots
|
2 x Full-size PCIe Mini (for WWAN / WLAN module) |

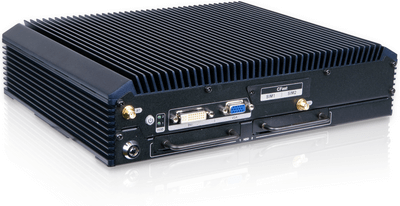

IRS-100-ULT3-i5/4G-R10 | Fanless railway system with Intel® Core™ i5-6300U processor, (15W), 4GB DDR4L pre-installed memory, two 2.5" SATA SSD bays, VGA, DVI, two M12 GbE LAN |
