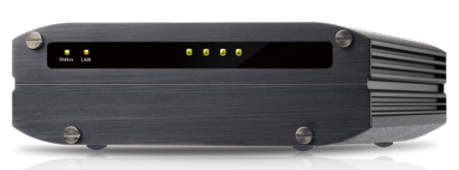

> 产品 > 强固型系统 > IBX-660| ● Four 2.5＂ removable drive bays, and maximum storage capacity support up to 8TB |
|
● 32GB eMMC (storage & boot)
|
|
● Rugged design with high resistance to
vibration and impact
|
|
● Dust-resistant and fanless design
|
|
● Wide operating temperature range: -40°C ~
50°C (-40°F ~ 122°F)
|
产品规格
|
SBC Form Factor
|
*CPU: Intel® Atom™ E3845 quad-core 1.91GHz |
| *Chipset: SoC | |
| *Memory: | |
| 2 x 204-pin DDR3L SO-DIMM. 8GB pre-installed (system max. 8GB) | |
| eMMC 32GB(storage and boot) | |
| *Power: | |
| Input 1: DC power jack, external power adaptor, 12V, 90W, Input: 100-240V | |
| Input 2: 4-pin terminal block, 9-36V DC | |
| Consumption: 40W (Intel® Atom® E3845 CPU with 8 GB 1600 MHz DDR3L memory, 4 x 2.5" HDD) | |
| *Safety / EMC: CE/FCC | |
| *Supported OS: Microsoft® Windows® 10 IoT Enterprise / Linux | |
|
Cooling method / System Fan
|
Fanless |
|
Drive Bays
|
4 x 2.5"" SATA HDD/SSD, removable drive bay |
|
Indicators
|
LED Indicators: Status, LAN, HDD 1-4 |
|
I/O Ports
|
2 x USB 3.0 |
| 2 x USB 2.0 | |
| 2 x RJ-45 PCIe GbE by Intel® I210 | |
| 1 x HDMI Display port (Resolution: up to 1080p support) | |
| 1 x Mic-in | |
| 1 x Audio out | |
|
Operating Temperature
|
-40°C ~ 50°C |
|
Construction
|
Wall-mount, DIN-rail mount |
|
Dimensions
|
180 x 247 x 59 mm ( WxDxH ) |
|
Weight
|
1.11 kg/3.2 kg ( Net/Gross ) |
|
Color
|
Black |
|
Expansion Slots
|
1 x Full-size PCIe Mini slot |
| 1 x onboard SIM card slot |
| IBX-660-8G-R10 | Industrial edge server with four 2.5" drive bays, Intel® Atom™ E3845 quad-core 1.9GHz, pre-installed 8GB DDR3L RAM, 32GB eMMC |
| IBX-660-W10E64-E-R10 | OS Image with Windows Embedded Standard 10 E 64-bit for IBX-660 series, with DVD-ROM, RoHS |
