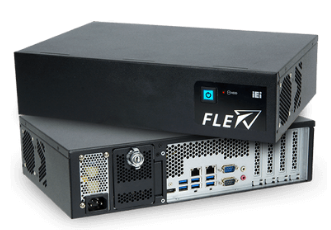

● 2U AI Modular PC with 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor |
● Four hot-swappable and accessible HDD drive
bays, support RAID 0/1/5/10
|
● Two PCIe 3.0 by 4 and two PCIe 3.0 by 8
slots
|
● Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD
support
|
● QTS-Gateway support
|
● Modular LCD panel kit design (Please
refer: FLEX-PLKIT Selection)
|
产品规格
SBC Form Factor
|
8th Genertion Intel CoreTM i7/i5/i3 porcessors in the LGA 1151 |
Intel® 300 Series Chipsets Q370 | |
FLEX AI Modular Box PC | |
Cooling method / System Fan
|
System fan |
Drive Bays
|
4 x Accessible 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1/5/10 support) |
Buttons
|
Power button with power LED (power on=Blue) |
AT/ATX mode switch | |
Reset button | |
I/O Ports
|
1 x HDMI output |
2 x GbE LAN | |
6 x USB 3.0 Type-A | |
2 x RS-232 DB-9 type | |
1 x Mic in | |
1 x Line out | |
1 x AC power in Inlet | |
Operating Temperature
|
-20°C ~ 50°C (with SSD and TDP 65W processor) |
-20°C ~ 40°C (with HDD or add-on cards without fan) | |
Humidity
|
5% ~95%, non-condensing |
Dimensions
|
357 x 230 x 88 |
Weight
|
4kg |
Color
|
Black C |
Expansion Slots
|
2 x PCIe 3.0 by 8 (by 16 slot) |
2 x PCIe 3.0 by 4 (maximum card size supported: 68 mm x 167 mm) |
FLEX-BX200-Q370-i3/25-R10 | 2U AI Modular BOX PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, 250W PSU, R10 |
FLEX-BX200-Q370-P/25-R10 | 2U AI Modular BOX PC, Intel® Penturm® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, 250W PSU, R10 |
