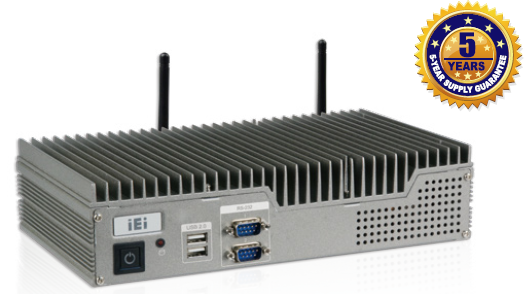

> 产品 > 强固型系统 > ECN-380-QM87| ● Intel® Core™ i5/Celeron® CPU » Intel® Core™ i5-4400E 2.7 GHz/Celeron® 2000E 2.2 GHz |
|
● Triple video outputs » 2 x HDMI + VGA
|
|
● Two 2.5” SATA 6Gb/s HDD/SSD drive bays
|
产品规格
|
Cooling method / System Fan
|
Fanles |
|
Drive Bays
|
2 x 2.5’ SATA HDD/SSD bay |
|
I/O Ports
|
2 x USB 3.0 |
| 4 x USB 2.0 | |
| Ethernet: | |
| 2 x RJ-45 | |
| LAN1: Intel® I217LM PHY with Intel® AMT 9.0 support | |
| LAN2: Intel® I210-AT PCIe controller | |
| 2 x RS-232 | |
| 2 x HDMI | |
| 1 x VGA | |
| Resolution: | |
| VGA: Up to 1920 x 1200@60Hz | |
| HDMI: Up to 2500 x 1600@60Hz | |
| Audio:1 x Line-out, 1 x Mic-in | |
| Wireless | |
| 1 x 802.11b/g/n (optional) | |
|
Operating Temperature
|
-10°C~60°C with air flow (SSD) |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Construction
|
12 V@4.6 A(Intel® mobile Core™ i5-4400E with 4GB 1333MHz DDR3 memory) |
|
Dimensions
|
265 x 134 x 56.7 |
|
Weight
|
2.4 kg/4.2 kg |
|
Color
|
Silver |
|
Expansion Slots
|
PCIe Mini: |
| 1 x Full-size PCIe Mini (support mSATA, SATA 6Gb/s signal only) | |
| 1 x Half-size PCIe Mini (only for iRIS-1010) |
| ECN-380-QM87i-i5/WD/4G-R11 | Fanless embedded system with Intel® Core™ i5-4400E 2.7 GHz, TDP 37W, 2 x HDMI, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 9 V~36V DC, RoHS |
| ECN-380-QM87i-C/4G-R11 | Fanless embedded system with Intel® Celeron® 2000E 2.2 GHz, TDP 37W, 2 x HDMI, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 12 V DC, RoHS |
| ECN-380-QM87i-C/WD/4G-R11 | Fanless embedded system with Intel® Celeron® 2000E 2.2 GHz, TDP 37W, 2 x HDMI, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 9 V~36 V DC, RoHS |
| ECN-380-QM87i-i5/4G-R11 | Fanless embedded system with Intel® Core™ i5-4400E 2.7 GHz, TDP 37W, 2 x HDMI, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 12 V DC, RoHS |
